Quarry specials

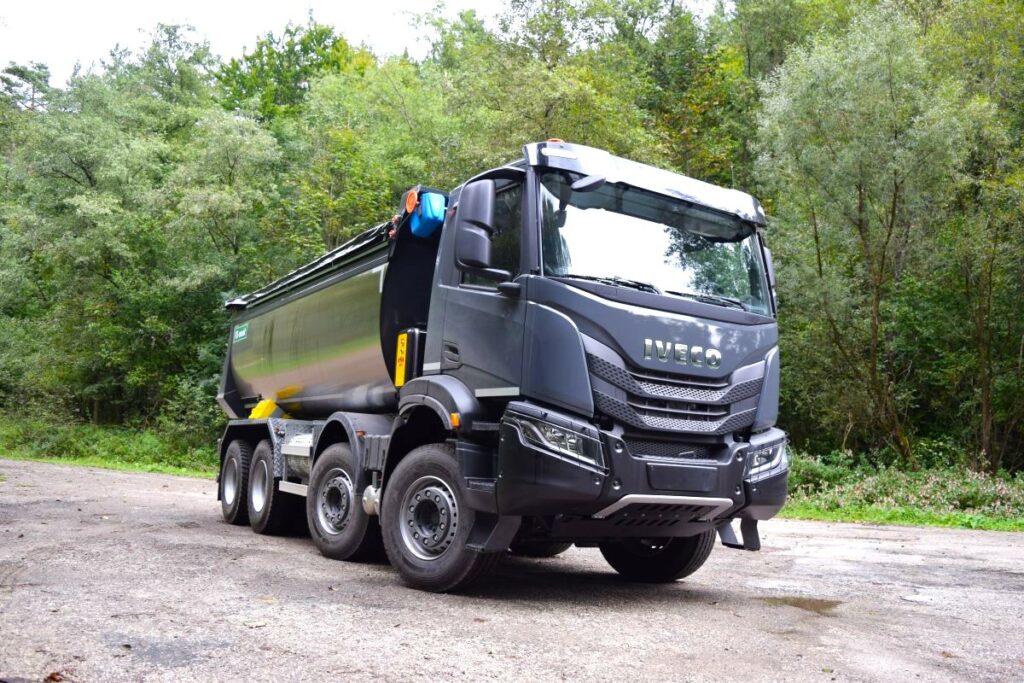

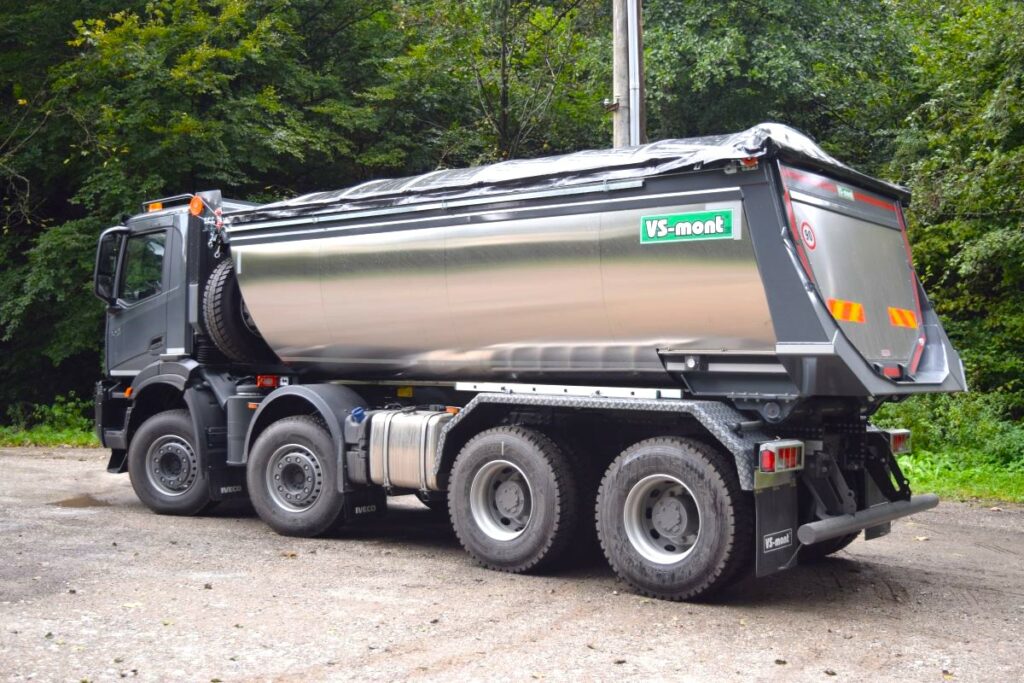

Rear tipper bodies in square design S1H VS-mont Jednostranné hranaté nadstavby S1H VS-mont are designed, manufactured and adapted specifically to the quarry sector. They are intended for transporting heavy material, such as rocks, stones, ores, coal, etc. in quarries and mines.
Tipper bodies are characterized by high resistance to wear and cracking and can be deployed in the harshest conditions.
Specification of tipper body S1H VS-mont onMB Arocs 8×8 chassis:


  • dimensions of the body: 5 900 mm x 2 300 mm x 1 600 mm;
  • loading volume: 22 m3;
  • material: high-strength abrasion-resistant steel HB500 TÜF
  • hydraulic double acting tailgate,hydraulické zadné čelo dvojčinné, raising the tailgate automatically when the tipper body is lifted;
  • heating of the tipper with exhaust gases from the chassis .
