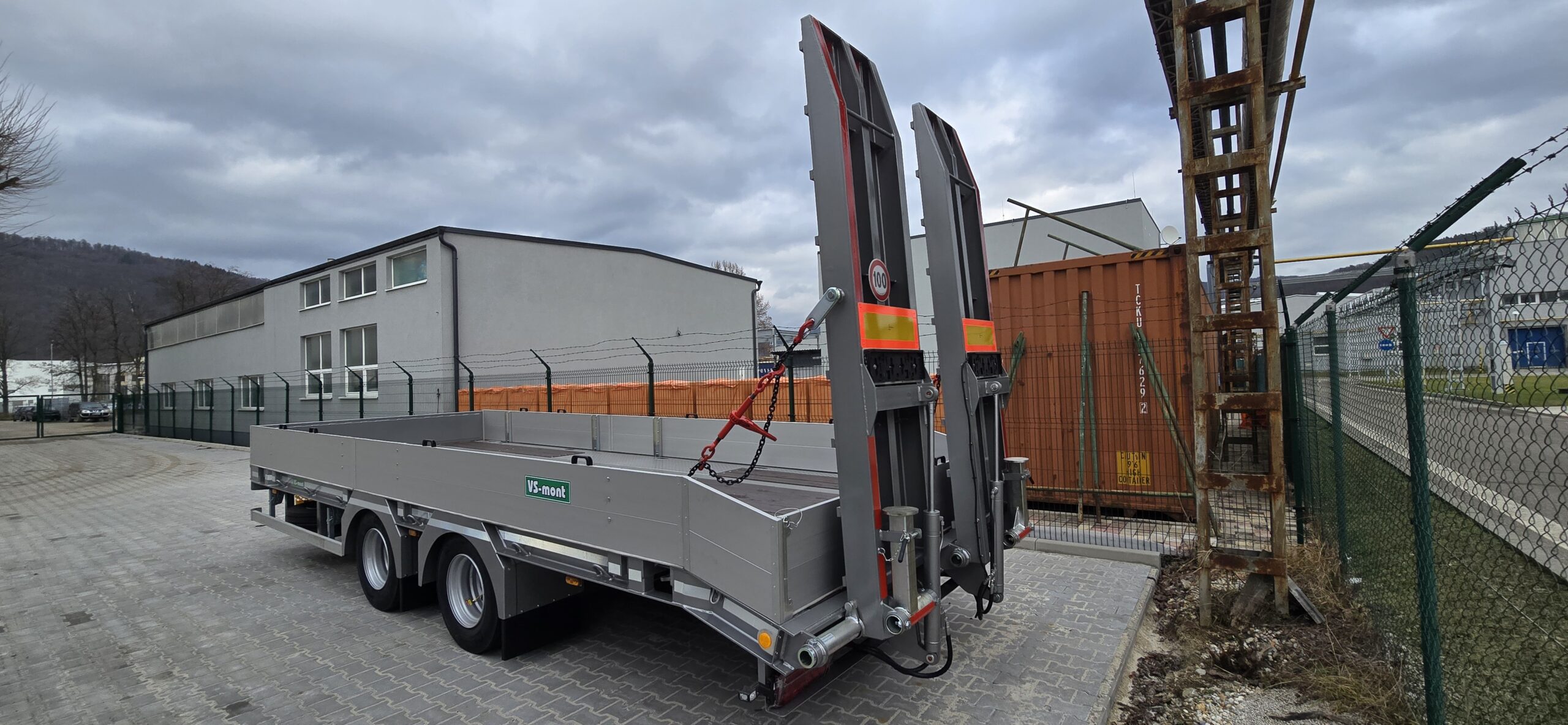

Lowbed trailer VSPP18T

Technical data

VSPP18T





Total load



18 000 kg
/ including drawbar /







Payload



13 300 kg







Dead weight



4 700 kg



Length of trailer



9 400 mm / including drawbar /



Length / width / height loading space



6500 – 8 000 mm / 2 540 mm / 900 mm







Chassis



BPW / SAF axles with drum brake 420x180mm, self-adjusting brake levers WABCO / HALDEX, automatic parking brake with spring cylinders.1st axle – Lift axle 2. and 3rd axle – Fixed axle







Suspension



air suspension, valve of air bellows discharge







Tyres



235/75 R17,5“ with steel discs







Frame



  • steel construction of ladder type, welded,
  • drawbar with self-adjusting eye diameter 40 mm (50 mm),
  • side underrun protections, mudguards with mudflaps,
  • adjustable support leg fitted on drawbar,







Installation



  • service and emergency air pressure brake equipped with WABCO / HALDEX
  • COLAS (adjustable chassis height while loading),
  • EBS+ 2S/2M WABCO / HALDEX include RSS (Roll Stalitity Support), handbrake,
  • electrical installation with electrical installation with ASPÖCK screwless joints, according to DIN standarts,
  • 5 – compartments rear combined lights, side positional lighting,
  • two-line hydraulic system with 16Mpa operating pressure,
  • loading ramps lifted hydraulically (600 mm / 15°)
  • (hydraulic cylinder D = 60, d = 35, s = 500),







Accessories for trailer



  • spare wheel holder, mechanical + spare wheel,
  • plastic toolbox,
  • plastic mudguards + mudflaps,
  • holders for fitting wedges + 2 piece: chocks,
  • reflective tipping body marking according to regulation EHK no. 104,
  • spare bulbs set, wheel spanner,
  • COC – EC certificate of conformity
  • instructions for use in english language,
  • 1.service inspection in VS-mont plant free of charge



Variants

  • disc brakes – material thickness changes
  • changes to the tipper design
  • side tarpaulin cover system
  • front tarpaulin cover system
  • infocentre – SMARTBOARD (odometer, electronic load measurement)
